Aram Midi

Name: Aram Midi
Brand: AVOLUX
SKU: I01.MLR.30830

Ürün ikonları

Stok kodu: I01.MLR.30830

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Tempered glass.

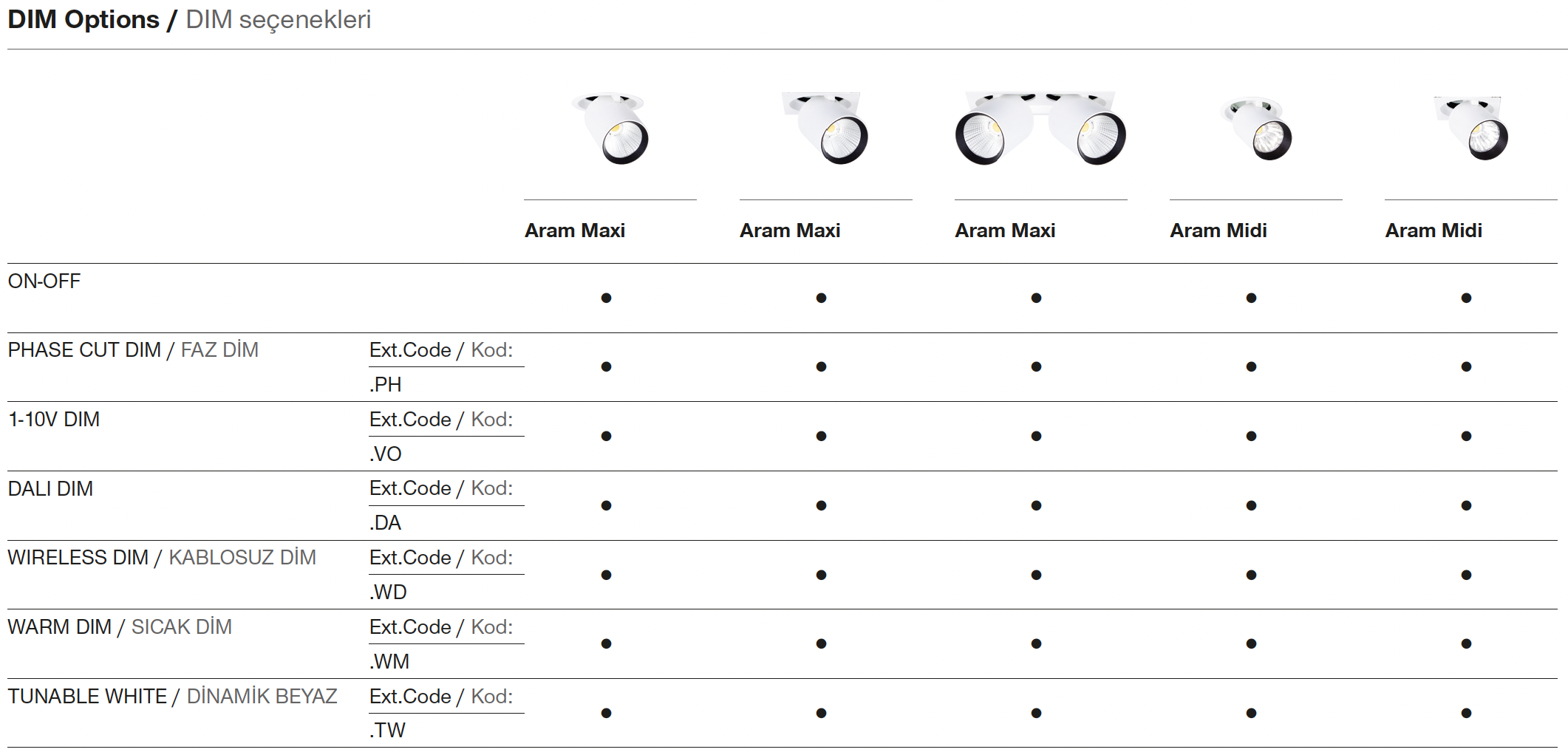

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

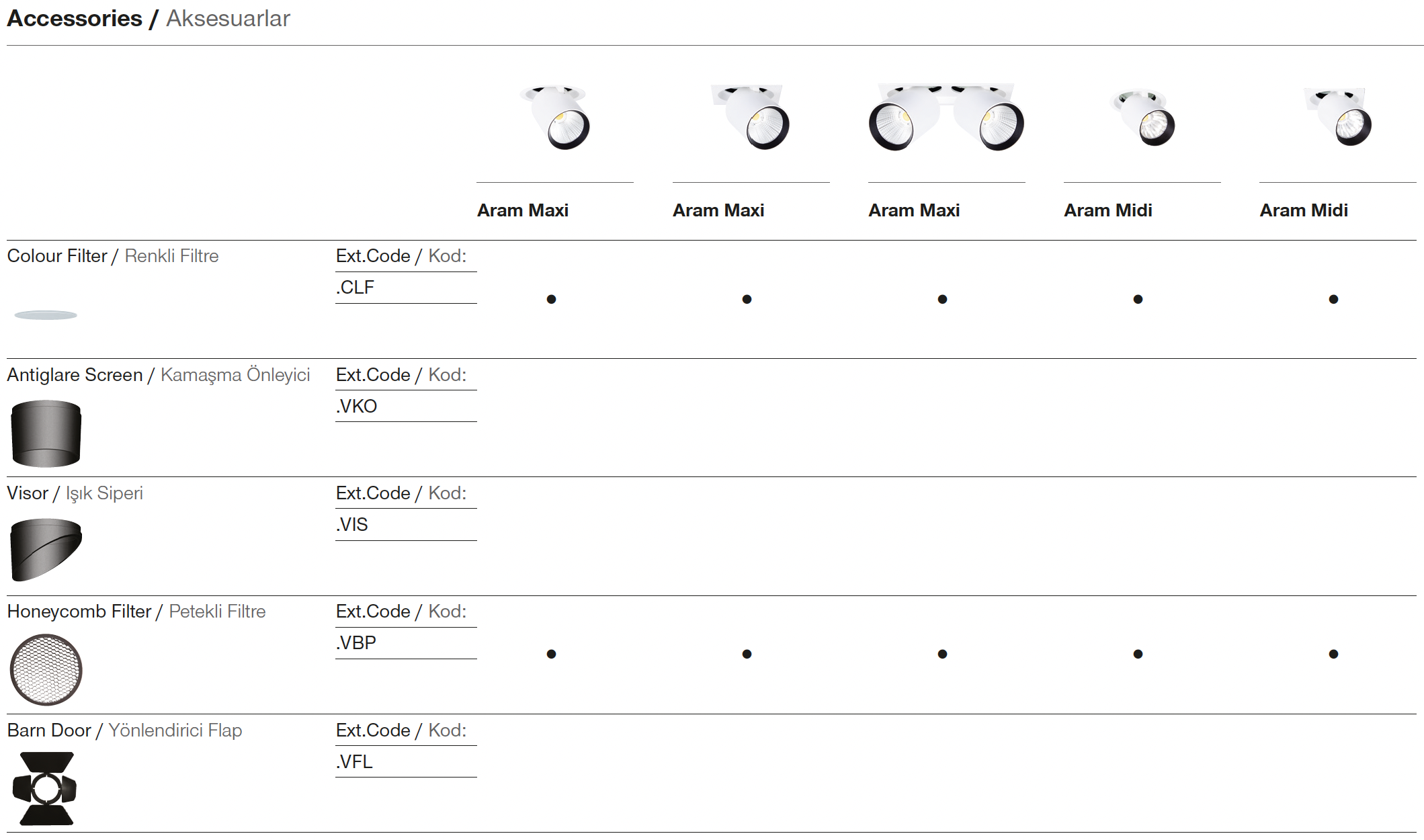

--Honeycomb Filter and Color Filter accessory options are applicable.

-- Narrow, Medium, Wide and Very Wide reflector angle options are available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 130lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
20W	CRI>80	I01.MLR.30830 . (..) . (...) . (..) . (..)	2700K	2432
			3000K	2507
			3500K	2557
			4000K	2609
			5000K	2660
	CRI>90	I01.MLR.30830 . (..) . (...) . (..) . (..)	2700K	2262
			3000K	2332
			3500K	2379
			4000K	2462
			5000K	X
	CRI>98	I01.MLR.30830 . (..) . (...) . (..) . (..)	2700K	1741
			3000K	1796
			4000K	1869

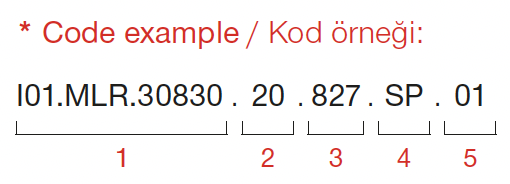

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
20	20W - 500mA	827	CRI>80 - 2700K	930	CRI>90 - 3000K	SP	23° - Spot	01	white
15	15W - 350mA	830	CRI>80 - 3000K	935	CRI>90 - 3500K	M.E.	35° - Medium	02	ral 9010
10	10W - 250mA	835	CRI>80 - 3500K	940	CRI>90 - 4000K	FL	48° - Flood	03	black
7	7W - 180mA	840	CRI>80 - 4000K	9827	CRI>98 - 2700K			04	gray
		850	CRI>80 - 5000K	9830	CRI>98 - 3000K			05	dark gray
		927	CRI>90 - 2700K	9840	CRI>98 -4000K			06	special color
