Carmen Mini

Name: Carmen Mini
Brand: AVOLUX
SKU: I01.MLR.19015

Ürün ikonları

Stok kodu: I01.MLR.19015

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- Very Narrow, Medium and Very Wide reflector angle options are available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- UGR<19 low glare feature in Very Narrow and Medium angle options provides.

-- Efficiency up to 92lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
15W	CRI>80	I01.MLR.19015 . (..) . (...) . (..) . (..)	2700K	1571
			3000K	1681
			3500K	1579
			4000K	1798
			5000K	1926
	CRI>90	I01.MLR.19015 . (..) . (...) . (..) . (..)	2700K	1468
			3000K	1513
			3500K	1519
			4000K	1646
			5000K	X
	CRI>98	I01.MLR.19015 . (..) . (...) . (..) . (..)	2700K	1071
			3000K	1110
			4000K	1189

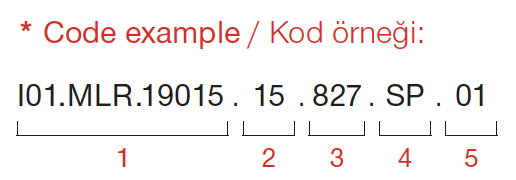

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
15	15W - 350mA	827	CRI>80 - 2700K	930	CRI>90 - 3000K	SP	17° - Spot	01	white
10	10W - 250mA	830	CRI>80 - 3000K	935	CRI>90 - 3500K	M.E.	25° - Medium	02	ral 9010
7	7W - 180mA	835	CRI>80 - 3500K	940	CRI>90 - 4000K	FL	32° - Flood	03	black
4	4W - 100mA	840	CRI>80 - 4000K	9827	CRI>98 - 2700K	W.F.	55° - Wide Flood	04	gray
		850	CRI>80 - 5000K	9830	CRI>98 - 3000K			05	dark gray
		927	CRI>90 - 2700K	9840	CRI>98 -4000K			06	special color
