AVX Modular 48V

Name: AVX Modular 48V
Brand: AVOLUX
SKU: I02.LL.15205

Ürün ikonları

Stok kodu: I02.LL.15205

Kategoriler: 48V Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum profile body.

-- With 48V DC input.

-- Intelligent cooling design with passive cooling technology.

-- With DC/DC transformer adapter suitable for Stucchi 48V rail system.

-- With Opal Diffuser

-- DALI and 1-10V DIM options available.

-- Wireless DIM and Hot DIM, which are high-tech control systems applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- High CRI>90 and standard CRI>80 LED options are available.

-- High color compatibility: <3 SDCM.

Strength	CRI	Order Code	Kelvin	Lumen

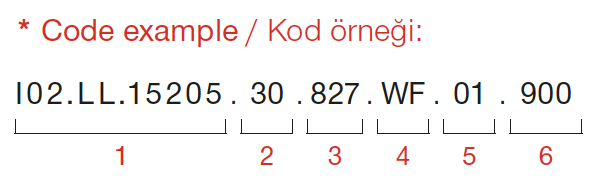

30W	CRI>80	I02.LL.15205 . (..) . (...) . (..) . (..) . (....)	2700K	2169
			3000K	2235
			4000K	2301
			5000K	2370
	CRI>90	I02.LL.15205 . (..) . (...) . (..) . (..) . (....)	2700K	2016
			3000K	2076
			4000K	2142
			5000K	2205

Strength	CRI	Order Code	Kelvin	Lumen
20W	CRI>80	I02.LL.15205 . (..) . (...) . (..) . (..) . (....)	2700K	1445
			3000K	1490
			4000K	1535
			5000K	1580
	CRI>90	I02.LL.15205 . (..) . (...) . (..) . (..) . (....)	2700K	1344
			3000K	1385
			4000K	1427
			5000K	1470

Strength	CRI	Order Code	Kelvin	Lumen
10W	CRI>80	I02.LL.15205 . (..) . (...) . (..) . (..) . (....)	2700K	723
			3000K	745
			4000K	767
			5000K	790
	CRI>90	I02.LL.15205 . (..) . (...) . (..) . (..) . (....)	2700K	672
			3000K	692
			4000K	714
			5000K	735
