Gizmo Focus

Name: Gizmo Focus
Brand: AVOLUX
SKU: I01.MLR.99802

Ürün ikonları

Stok kodu: I01.MLR.99802

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Mechanical locking with 20° vertical and 20° horizontal movement capability joint system.

-- Tempered glass.

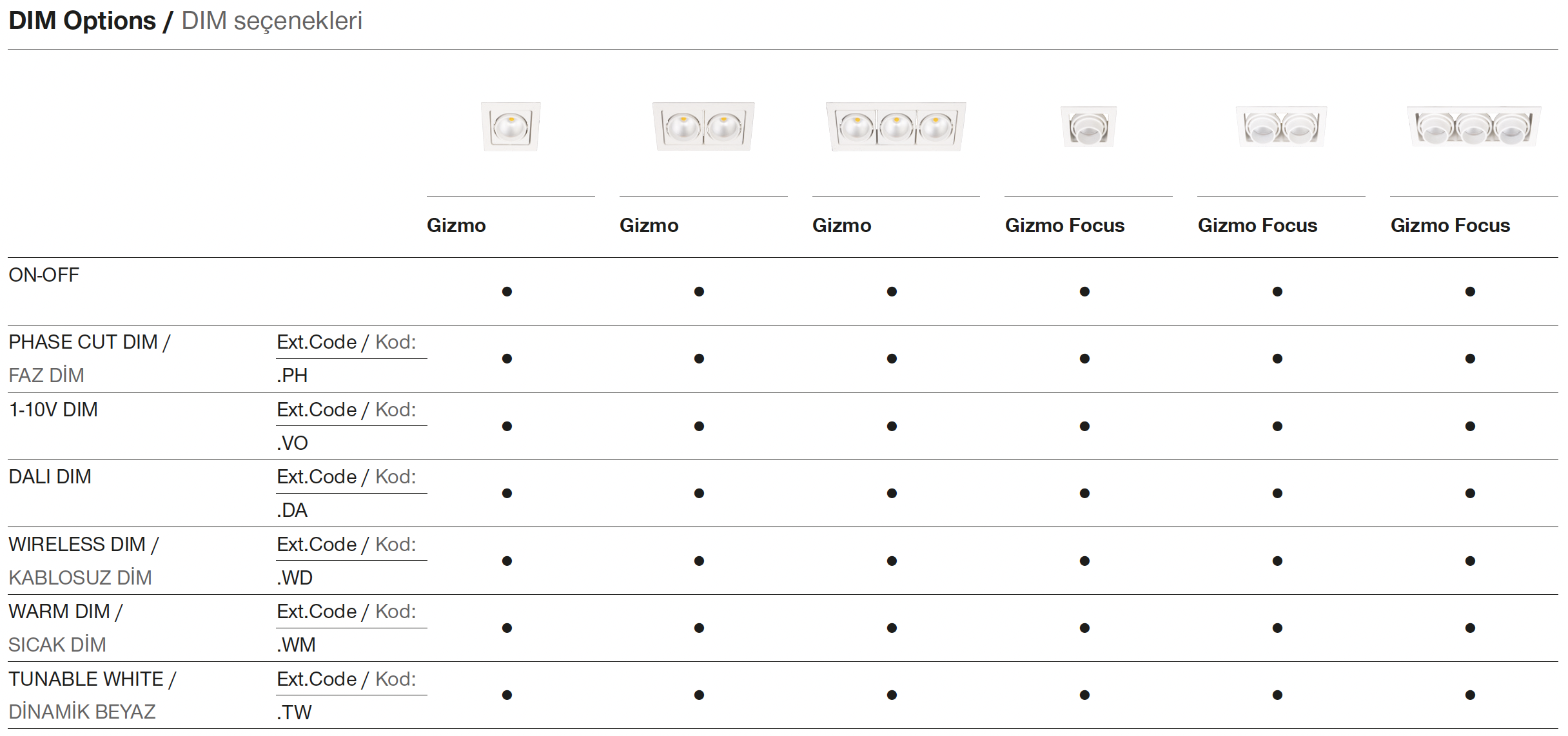

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

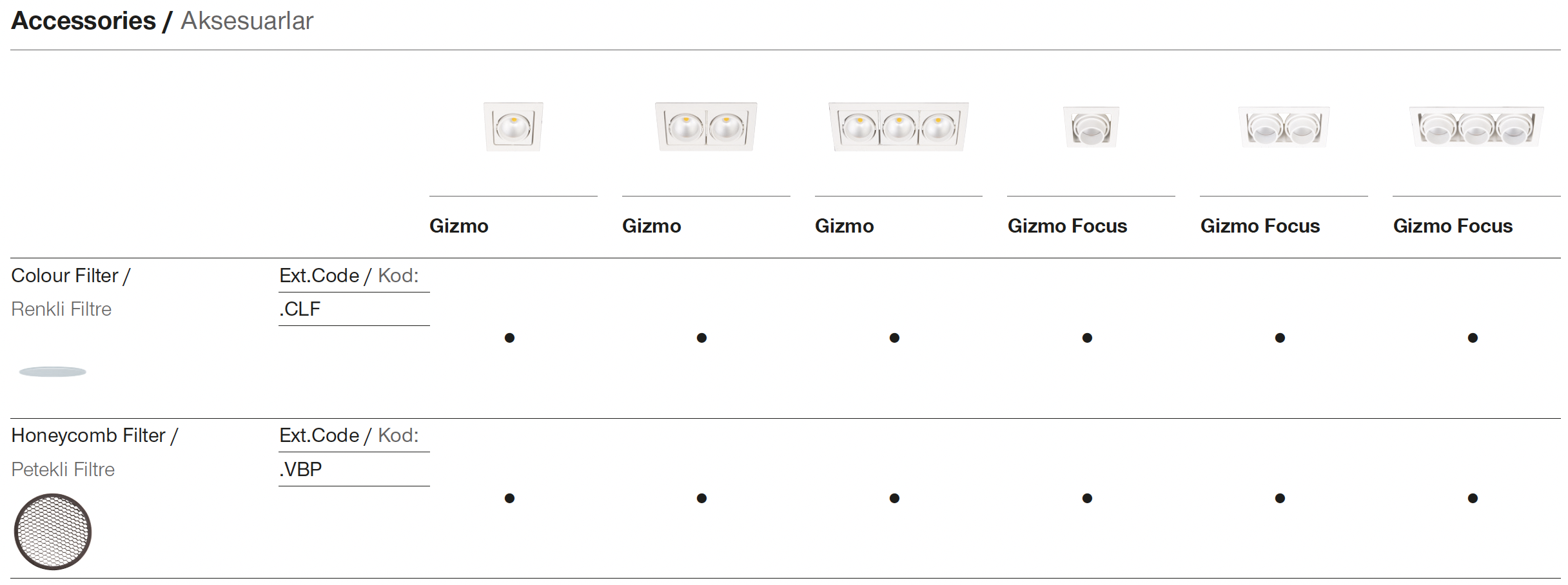

--Honeycomb Filter and Color Filter accessory options are applicable.

-- Wide reflector angle option is available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 115lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
2x7W	CRI>80	I01.MLR.99802 . (..) . (...) . (..) . (..)	2700K	1470
			3000K	1506
			3500K	1558
			4000K	1614
			5000K	1724
	CRI>90	I01.MLR.99802 . (..) . (...) . (..) . (..)	2700K	1324
			3000K	1354
			3500K	1402
			4000K	1450
			5000K	X

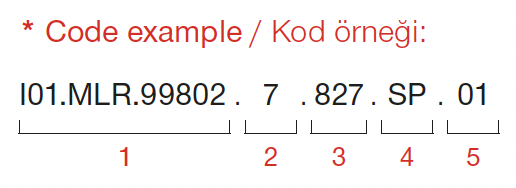

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
7	2x7W - 180mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	FL	2x40° - Flood	01	white
4	2x4W - 100mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K			02	ral 9010
		835	CRI>80 - 3500K	935	CRI>90 - 3500K			03	black
		840	CRI>80 - 4000K	940	CRI>90 - 4000K			04	gray
		850	CRI>80 - 5000K					05	dark gray
								06	special color
