Lumea Midi

Name: Lumea Midi
Brand: AVOLUX
SKU: I02.PLR.15045

Ürün ikonları

Stok kodu: I02.PLR.15045

Kategoriler: Power LED Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Classic DALI DIM option can be applied.

-- Wireless DIM application with high-tech control system can be done.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- Narrow, Medium and Wide lens angle options are available.

-- Standard CRI>80 and high CRI>90 LED options are available.

-- Efficiency up to 123lm/W.

-- High color compatibility: <3 SDCM.

Strength	CRI	Order Code	Kelvin	Lumen
8W	CRI>80	I02.PLR.15045 . (..) . (...) . (..) . (..)	2700K	922
			3000K	950
			3500K	970
			4000K	990
			5000K	1020
	CRI>90	I02.PLR.15045 . (..) . (...) . (..) . (..)	2700K	857
			3000K	884
			3500K	902
			4000K	920
			5000K	X

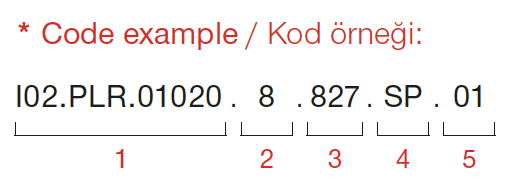

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
8W	8W	827	CRI>80 - 2700K	927	CRI>90 - 2700K	SP	15° - Spot	01	white
		830	CRI>80 - 3000K	930	CRI>90 - 3000K	M.E.	25° - Medium	02	ral 9010
		835	CRI>80 - 3500K	935	CRI>90 - 3500K	FL	45° - Flood	03	black
		840	CRI>80 - 4000K	940	CRI>90 - 4000K			04	gray
		850	CRI>80 - 5000K					05	dark gray
								06	special color
