Mars Mini
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 20W |
| Protection Class | IP40 |
| Shape | surface mounted |
| Optical | Reflector |
AÇIKLAMA
Açıklama
-- Aluminum body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Tempered glass.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter and Color Filter accessory options are applicable.
-- Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 132lm/W.
-- High color compatibility: <3 SDCM.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>80 | I01.MLS.20520 . (..) . (...) . (..) . (..) | 2700K | 2490 |
| 3000K | 2540 | |||
| 3500K | 2590 | |||
| 4000K | 2645 | |||
| 5000K | 2722 | |||
| CRI>90 | I01.MLS.20520 . (..) . (...) . (..) . (..) | 2700K | 2316 | |
| 3000K | 2362 | |||
| 3500K | 2410 | |||
| 4000K | 2460 | |||
| 5000K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20W - 500mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | FL | 45° - Flood |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

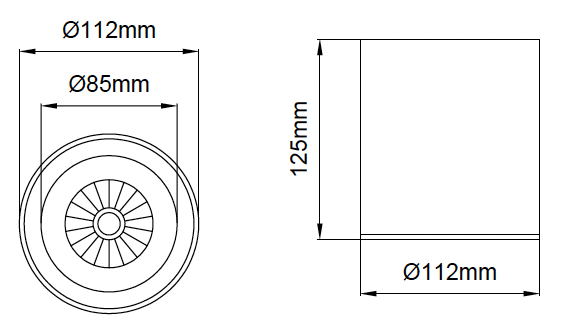

Teknik Çizimler
Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color

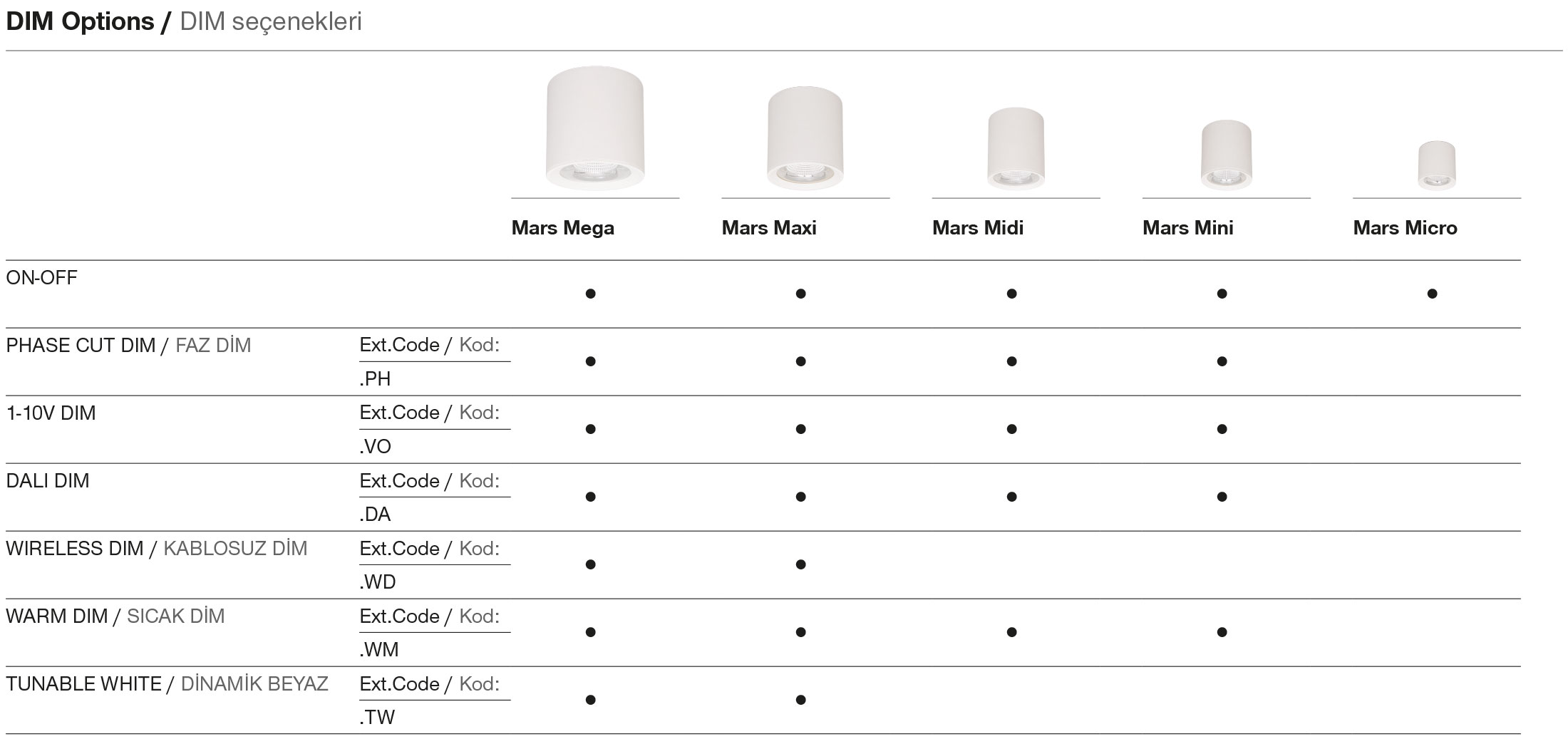

DIM Seçenekleri
Aksesuarlar
