Pars

Name: Pars
Brand: AVOLUX
SKU: I02.PLR.99901

Ürün ikonları

Stok kodu: I02.PLR.99901

Kategoriler: Power LED Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

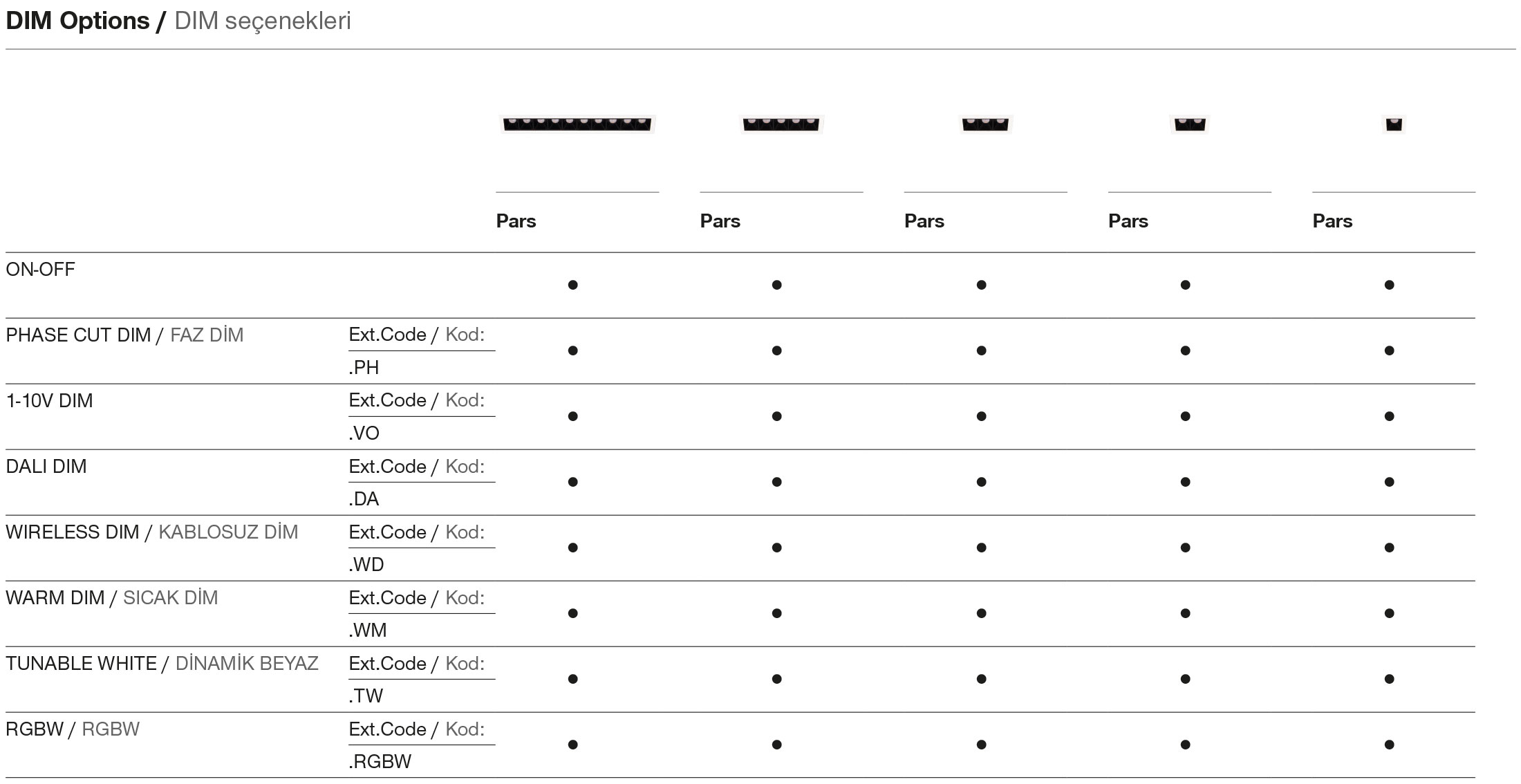

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- Wireless DIM, Dynamic White and Warm DIM applications, which are high-tech control systems, can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

--Medium and Very Wide lens angle options are available.

-- Standard CRI>80 and high CRI>90 LED options are available.

-- High color compatibility: <3 SDCM.

-- IP40 protection class.

Strength	CRI	Order Code	Kelvin	Lumen
2W	CRI>80	I02.PLR.99901 . (..) . (...) . (..) . (..)	2700K	143
			3000K	147
			3500K	150
			4000K	153
			5000K	158
	CRI>90	I02.PLR.99901 . (..) . (...) . (..) . (..)	2700K	133
			3000K	137
			3500K	140
			4000K	142
			5000K	X

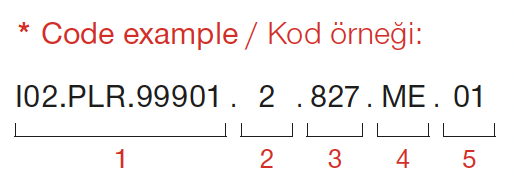

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
2	2W - 500mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	M.E.	30° - Medium	01	white
		830	CRI>80 - 3000K	930	CRI>90 - 3000K	W.F.	60° - Wide Flood	02	ral 9010
		835	CRI>80 - 3500K	935	CRI>90 - 3500K			03	black
		840	CRI>80 - 4000K	940	CRI>90 - 4000K			04	gray
		850	CRI>80 - 5000K					05	dark gray
								06	special color
