Pinto
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 1.5W |
| Protection Class | IP67 |
| Shape | Burying in the Ground |
| Optical | Lens |
| Diameter | Ø52mm |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- 316 quality stainless frame.
-- Easy application feature thanks to its external mounting plastic case.
-- 220-240V / 50-60Hz energy input.
-- Narrow, medium and wide angle options are available.
--Max. Transport weight: 2000kg
-- Suitable for use with Power LED.
-- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K color temperature
options are available.
-- Thermal shock resistant tempered glass.
-- Silicone gasket providing water resistance.
-- All external bolts are stainless steel.
-- High LED color compatibility: <3 SDCM
-- Efficiency up to 148lm/W.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 1.5W | CRI>80 | O07.UP.01665 . (..) . (...) . (..) . (..) | 2700K | 209 |
| 3000K | 213 | |||
| 3500K | 217 | |||
| 4000K | 222 | |||
| 5000K | 225 | |||
| 6500K | 229 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 | 1.5W - 500mA | 827 | CRI>80 - 2700K |  | SS | 15° - Super Spot |  | 07 | stainless steel | ||
| 830 | CRI>80 - 3000K |  | M.E. | 30° - Spot | |||||||
| 835 | CRI>80 - 3500K | ||||||||||
| 840 | CRI>80 - 4000K | ||||||||||
| 850 | CRI>80 - 5000K | ||||||||||

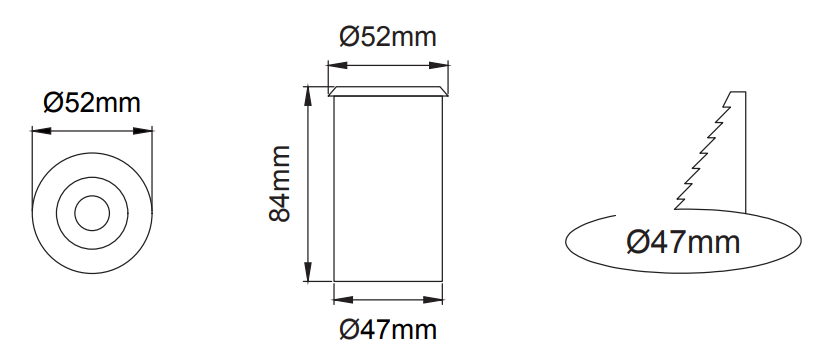

Teknik Çizimler

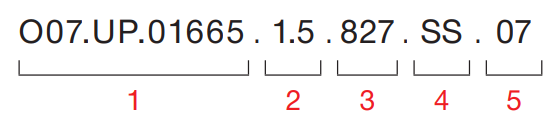

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
