Space Maxi

Name: Space Maxi
Brand: AVOLUX
SKU: I01.MLR.40245

Ürün ikonları

Stok kodu: I01.MLR.40245

Kategoriler: Power LED Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Mechanical locking joint system with 60° vertical movement capability.

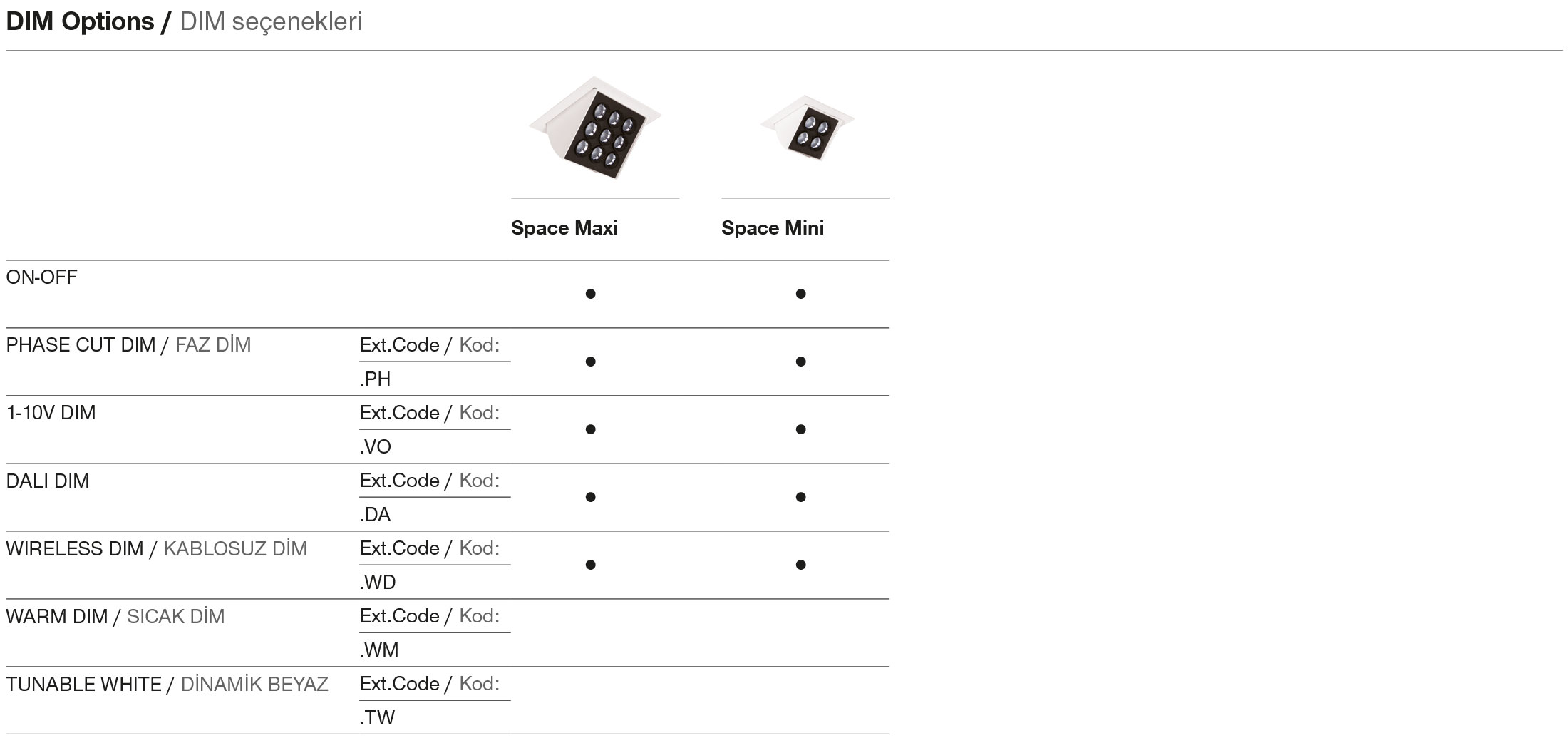

-- Classic DALI DIM option can be applied.

-- Wireless DIM application with high-tech control system can be done.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

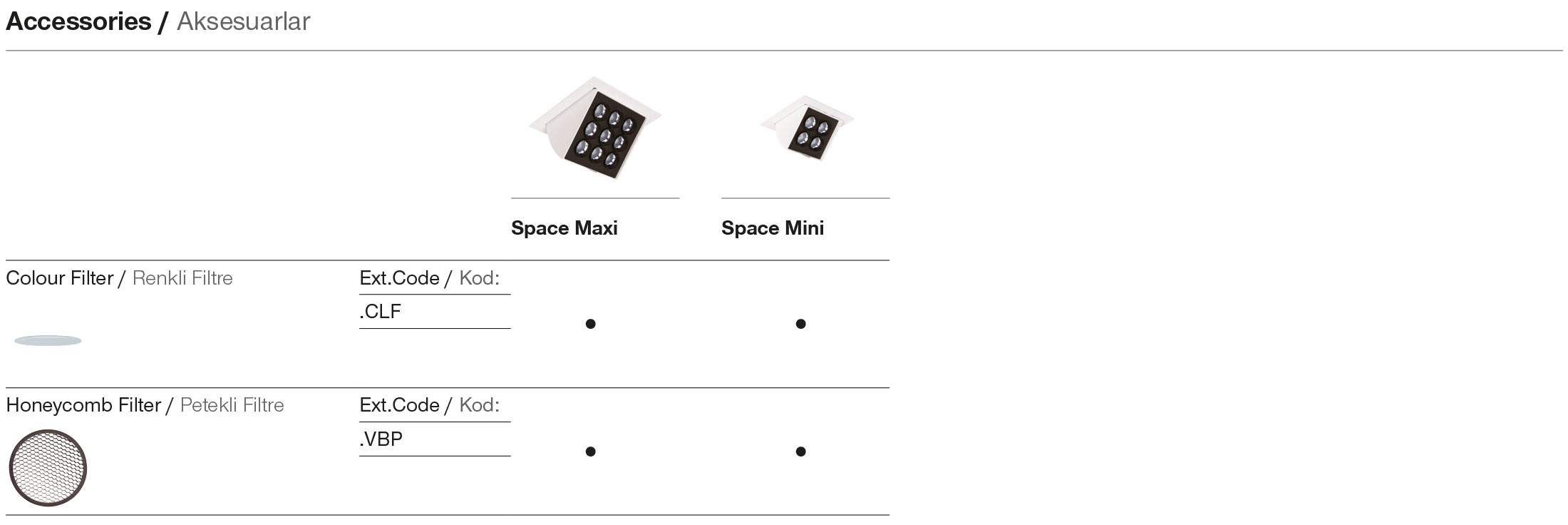

--Honeycomb Filter and Color Filter accessory options are applicable.

-- Very Narrow, Medium and Very Wide reflector angle options are available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 98lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
25W	CRI>80	I01.MLR.40245 . (..) . (...) . (..) . (..)	2700K	2282
			3000K	2353
			3500K	2401
			4000K	2450
			5000K	2523
	CRI>90	I01.MLR.40245 . (..) . (...) . (..) . (..)	2700K	2122
			3000K	2185
			3500K	2230
			4000K	2274
			5000K	X

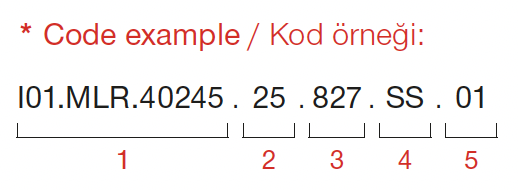

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
25	25W - 900mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	SS	15° - Super Spot	01	white
20	20W - 700mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K	M.E.	34° - Medium	02	ral 9010
15	15W - 500mA	835	CRI>80 - 3500K	935	CRI>90 - 3500K	W.F.	50° - Wide Flood	03	black
		840	CRI>80 - 4000K	940	CRI>90 - 4000K			04	gray
		850	CRI>80 - 5000K					05	dark gray
								06	special color
